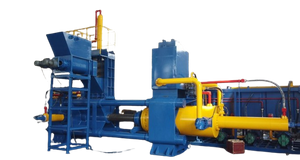

Y83 series Hydraulic briquetting press (Chip packing machine) is suitable for the aluminum alloy factory. Steel casting factory, aluminum casting factory ,copper casting factory, etc ,to compress and pack the aluminum chip ,steel chip, iron chip and copper chips for melting down. It can replace the waste steel, pig iron, aluminum ingot and waste copper as row materials and reduce the fire loss, This equipment can press coldly the cast iron chip, steel chip ,copper chip and aluminum chip into 3-6kg cylinder caky blocks, easy for transportation, furnace casting, during the whole course of which, the temperature adding and the additive or other craftwork are not needed. After the iron chip has been pressed, the densities reach 5-6T/ m³. The machine can also adopt the domestic and imported hydraulic elements and electric elements fitted with the automatic feeding, weighting devices, etc. according to the customer’s requirement. The model Y83-500 metal chip press block hydraulic machine is designed for copper material, the press block density reaches over 7T/ m³, the machine is ideal to press and pack the lead and brass ideal products.
1. High-density briquetting reduces transportation and storage costs.
2. High dissolution efficiency, higher quality of smelted metal products.
3. Equipped with conveyor belt, it can realize fully automatic production line.
Model | Nominal Force(kn) | Aux.Cylinder Press(kn) | Power(kw) | Production(kg/h) | Bale Size(mm)(φ*H) |
Y83-150 | 1500 | 60 | 22 | 1000~1300 | Diameter80*50~80 |
Y83-250 | 2500 | 60 | 30 | 1000~1500 | diameter90*50~80 |
Y83-315 | 3150 | 100 | 30 | 1200~1500 | diameter100*50~80 |
Y83-315 | 3600 | 100 | 30 | 1200~2000 | diameter110*50~80 |
Y83-400 | 4000 | 100 | 30 | 1800~2600 | diameter120*70~130 |
Y83-500 | 5000 | 100 | 30 | 2000~3000 | diameter130*70~130 |
Y83-630 | 6300 | 100 | 30 | 2200~3600 | diameter130*70~130 |
 |  |
