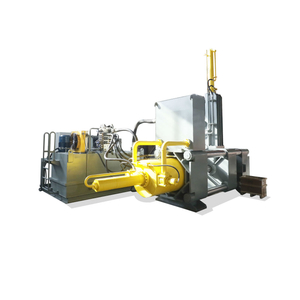

Chip merging machine, also known as briquetting machine, chip cake machine, can be iron, copper, aluminum, steel, cast iron filings or crushed material shavings and other metal powder particles cold pressed into cylindrical cake blocks, the process does not need heating and additives suitable for aluminum alloy profiles, cast steel, cast aluminum, copper casting plants, instead of scrap steel pig iron aluminum ingot scrap copper as a better quality raw material,The purpose of the metal scrap briquetting machine is to maximize the utilization of metal scrap, from soft metal to hard cast iron scrap. Horizontal series metal briquetting machine is used to press processing waste. The finished briquette can be fed directly into the smelting furnace. This process brings significant economic benefits to both the company and the foundry.
1. High-density briquetting reduces transportation and storage costs.
2. High dissolution efficiency, higher quality of smelted metal products.
3. Equipped with conveyor belt, it can realize fully automatic production line.
4. Horizontal crumb cake machine can do more pressure.
| Model | Nominal Force(Kn) | Production (T) | Motor(KW) | Bale Size(mm) |
| Y83-150 | 1500 | 3～6 | 15 | φ80×60-80 |
| Y83-200 | 2000 | 4～6 | 18.5 | φ80×60-80 |
| Y83-250 | 2500 | 6～7 | 18.5 | φ90×70-100 |
| Y83-315 | 3150 | 8～12 | 30 | φ90×80-100 |
| Y83-360 | 3600 | 10～12 | 30 | Φ90×70-100 |
| Y83-400 | 4000 | 10～18 | 37 | φ120×70-130 |
| Y83-500 | 5000 | 10～20 | 37 | Φ130×70-130 |
| Y83-630 | 6300 | 20～30 | 45 | φ150×100-120 |
| Y83-800 | 8000 | 40～55 | 75+55 | φ150×140-180 |
| Y83-1000 | 10000 | 55～65 | 55+37 | φ240×200-250 |
| Y83-1250 | 12500 | 75～90 | 75+55 | φ240×200-250 |
 |  |
